Implementing linear regression in Power BI

LINEST and LINESTX are two DAX functions that calculate a linear regression by using the Least Squares method. Both functions return multiple values, represented in a table that has a single row and one column for each of the values returned.

LINEST gets column references as arguments, whereas LINESTX explicitly iterates over the table provided in the first argument and executes the other arguments in a row context. Internally, LINEST invokes LINESTX and provides to it the table that contains the column references specified in the LINEST arguments. This article describes the more generic function LINESTX.

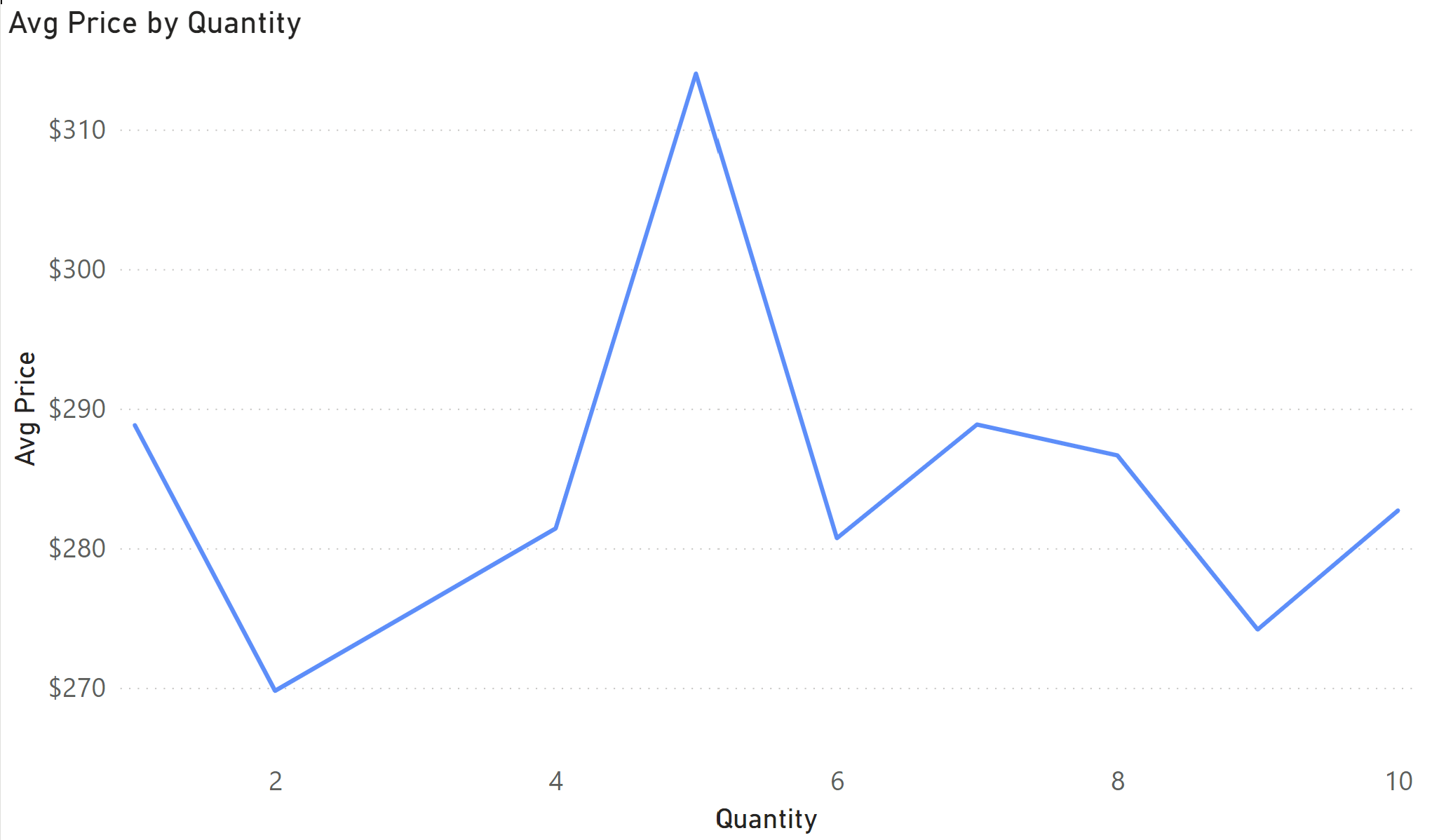

We start our example by analyzing for all transactions of our Contoso database, the average price for various quantities purchased.

Through the linear regression, we want to obtain the following result.

In our simple scenario, the goal is to produce the slope and intercept parameters for the following formula:

Y = X * slope + intercept

We want to compute the linear regression by considering all the values of Sales[Quantity] displayed in the chart. The LINESTX function is the best candidate, as it allows us to specify the number of data points used to compute the linear regression.

The first argument of LINESTX is the table to iterate for the calculation: for each row, there is an expression evaluated for the Y-axis and one or more expressions evaluated for the X-axis. In this article, we consider the simplest case where we have a single expression for the X-axis. This is the LINESTX syntax to compute the slope and intercept parameters of the linear regression for our chart:

LINESTX (
    ALLSELECTED ( Sales[Quantity] ), -- Table with datapoints to iterate
    [Avg Price],                     -- Expression for the Y-axis
    Sales[Quantity]                  -- Expression for the X-axis
)

LINESTX returns two values: slope and intercept. It actually returns more columns, though we only need these first two columns for now. We are used to aggregation functions returning a single scalar value. LINESTX can return multiple values by returning a table that has one row and multiple columns. Indeed, we can execute the following DAX query:

DEFINE
    MEASURE Sales[Avg Price] = [Sales Amount] / [Total Quantity]
EVALUATE
LINESTX (
    ALL ( Sales[Quantity] ),
    [Avg Price],
    Sales[Quantity]
)

Slope1	Intercept	StandardErrorSlope1	StandardErrorIntercept	CoefficientOfDetermination	StandardError	FStatistic	DegreesOfFreedom	RegressionSumOfSquares	ResidualSumOfSquares
0.12	283.60	1.43	8.84	0.00	12.95	0.01	8	1.23	1,340.92

The single row returned by the query has more columns than just slope and intercept.

LINEST and LINESTX return more statistical information about the result of the Least Squares algorithm. If you are from a statistics background, you probably already know these additional parameters. Otherwise, you may find more information at Wolfram MathWorld. In both cases, our goal here is to explain how to consume the result of LINESTX in DAX.

Because in a DAX formula you are likely to use several of the values returned by LINESTX (slope and intercept in our case), the most efficient technique is to store the result in a variable and access each value by using SELECTCOLUMNS. Here is the definition of the LinearRegression measure we used to draw the linear regression line in our chart:

LinearRegression =
VAR line =
    LINESTX (
        ALL ( Sales[Quantity] ),
        [Avg Price],
        Sales[Quantity]
    )
VAR slope = SELECTCOLUMNS ( line, [Slope1] )
VAR intercept = SELECTCOLUMNS ( line, [Intercept] )
VAR x = SELECTEDVALUE ( Sales[Quantity] )
VAR y = x * slope + intercept
RETURN y

The intercept variable retrieves the value of the Intercept column. The result of SELECTCOLUMNS is a table with one row (because LINESTX returns only one row) and one column (because we specify only one column argument). Thanks to the automatic conversion provided by DAX, when we use the slope and intercept variables in the final calculation for y, these tables with one row and one column are automatically converted into the corresponding scalar value. In other languages, we would have written the code this way:

VAR slope = line[Slope1]
VAR intercept = line[Intercept]

However, DAX does not provide the column reference syntax to access the columns of a variable that includes a table. Therefore, we need the longer syntax provided by SELECTCOLUMNS. As it is not intuitive the first time, an entire article was well deserved for this technique alone!

Another detail that is important to explain is why we used “Slope1” for the column name to retrieve the slope value instead of just using “Slope”. The reason is that LINEST and LINESTX are functions that accept several series of values for the X-axis, generating a formula that has a slope value for each X-axis series of values. The equation for the line defined is the following:

Y = X1 * Slope1 + X2 * Slope2 + … + Xn * SlopeN + Intercept

Because we used only one value for the X-axis argument, we only need Slope1. When you write a formula, you know how many Slope parameters to use because it corresponds to the number of X-axis values provided to LINESTX.

Creating a linear regression in DAX is now much easier than it used to be (also through calculation groups), you just have to pay attention to the correct use of variables, which are also required to avoid multiple evaluations of the same LINESTX function.
